Slotting 2 Color Flexographic Printing Machine 180 Pcs/Min For Box

Ask Lasest Price
Brand Name :	RINO
Model Number :	HP-LD1050
Certification :	CE
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	10 Set/Month
Delivery Time :	40-60 Working Days After Deposit

Add to Cart

Product Details
Company Profile

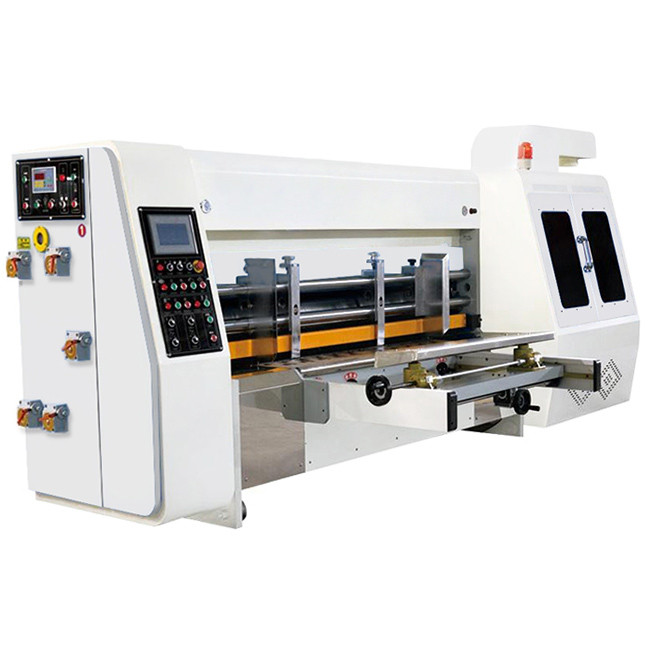

Slotting 2 Color Flexographic Printing Machine 180 Pcs/Min For Box

Small 2 Color Flexo Printing Machine With Slotting 180 Pcs/Min For Box

Box Flexo Printing Machine Introduction

1. The main engine element unit is clutched and electrically coupled with an alarm bell, and the bell will continue to ring during the clutch to ensure the safety of the operator.
2. Phase memory.
3. The main motor starts with frequency conversion, and the motor adopts frequency conversion motor, Delixi frequency converter. The electrical appliances adopt Chint and other famous brand products.
4. Pneumatic components: The pneumatic components adopt Siemens and other famous brand products, and the diaphragm pump adopts Wuhan Jinchangjiang famous brand products.
5. The ink is evenly applied to the machine, and the amount of ink is controllable to prevent ink overflow and ensure that the outside of the ink path is clean and hygienic.

Parameter of Carton Flexo Printing Machine

Width	mm	2800
Maximum Paper feeding size	mm	1050×2600
Effective printing size	mm	1050×2500
Minimum Paper feeding size	mm	280×650
Thickness of printing plate	mm	7.2
Design speed	sheets/mi n	200
Economic speed	sheets/mi n	180
Main motor	KW	22
Total power	KW	30
Weight	T	20
Tinted precision	mm	±0.5
Die cutting precision	mm	±1.5

Main units

Slotting 2 Color Flexographic Printing Machine 180 Pcs/Min For Box

Paper feeding unit

1. Adopt the leading edge roller paper feeding system, which can greatly improve the paper feeding stability of curved cardboard.

2. Manual adjustment of the left and right baffle positions, manual adjustment of the front baffle gap, and electric adjustment of the rear block position.

3. Paper feed counter, set and display production quantity.

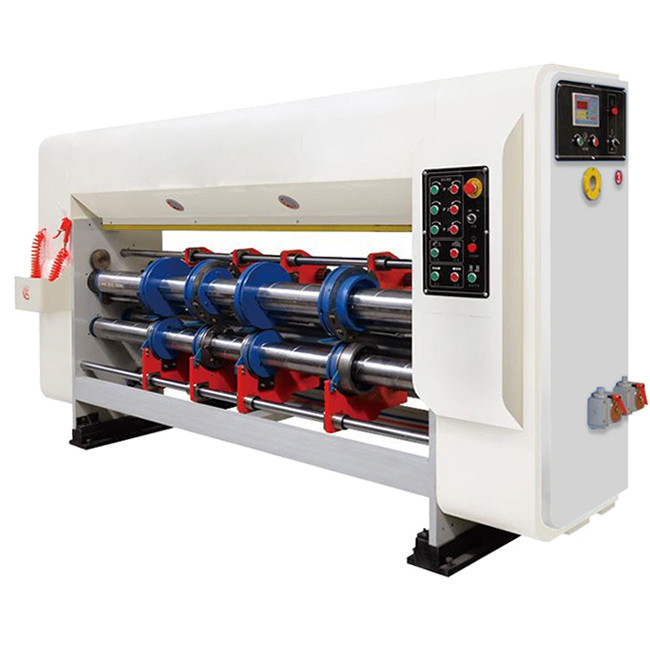

Slotting unit

1. The shaft diameter is ￠110mm thick-walled steel pipe, the surface is ground, hard chrome plated,move smoothly.

2. Perform balance correction and run smoothly.

3. Manual adjustment of the pressure wheel gap dial, the adjustment range is 0～12mm.

Packaging&shipping

FAQ

1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
