50Hz Automatic Four Color Flexo Printing Machine With Slotter And Die Cutter And Stacker

Carton Box Flexo Printing Machine Introduction

The slotting department adopts PLC programming to control the operation of each part, store and memorize orders, and control each part automatically in place with one button, and enter the "length, width and height" of the new order to form with one button. The die-cutting department adopts the most popular plate-free die-cutting device and speed difference compensation system. The rubber pad moves vertically and horizontally to increase the service life of the rubber pad. The gear of the whole machine is ground with special alloy steel, and the keyless coupling ring is used to ensure the transmission accuracy. Automatic oil spray and automatic oil balance device, which keeps the oil level of each unit at the same level, and also guarantees the service life of the gear. All electrical, electronic and pneumatic components comply with European CE safety standards. The latter process can also be combined with a central paper dust collection system, printing box glue line or waste removal stacker to work together.

Parameter of Carton Flexo Printing Machine

Main units

Paper feeding unit 1. In addition to static electricity device, brush and synchronous lifting type dust suction device, dust removal is more perfect. 2. Single-row paper feed roller mode, quick-change mechanism for paper feed rollers. 3. The main control computer and unit man-machine control system. 4. Optional-adsorption transmission box, improve compression resistance, widened dust removal system, better effect. 5. Shandong Komori servo leading edge paper feeding system (four-axis). 6. The front edge of the servo is equipped with a German (Rexroth) power and drive system.

Printing unit 1. Set up a controlled circulating ink supply system, ink supply protection, ink shortage alarm, ink saving settings, and quick cleaning. Optional: Double squeegee wiping system-better printing effect. 2. Dust-proof control box. 3. "Delta" series PLC, high-speed operation module and connection communication interface. 7-inch monochrome touch-sensitive unit operation man-machine interface, DC24V button and selector switch, frequency converter to adjust the air volume of cardboard transmission, unit sub-power non-fuse switch, motor start/stop and overload protection, control circuit protection switch. 4. Synchronous lifting device for impression roller and paper feeding wheel, gap button electric and value setting adjustment, gap upper and lower position program protection device, gap value man-machine display. 5. The special ceramic hard paper feeding wheel has a long service life and ensures the accuracy of cardboard conveying.

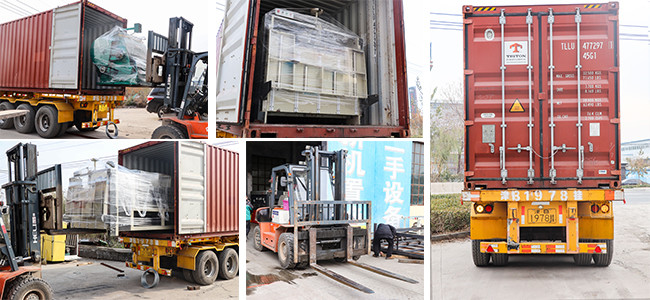

Packaging&shipping

Rino is a fast growing group company mainly committed to manufacturing and exporting high quality products with reasonable price to fulfill the needs of the most rigorous buyers. With the development of 20 years ,Rino Group already established flexo printing machine plant ,manual die cutting machine plant ,corrugated production line plant in Hebei province , carton packaging plant and trade department in Jinan Shandong province, Oversea branch in Chennai India.

Our company has nearly 20 years of experience in carton packaging production and professional technical team which can provide reasonable packaging solutions, after-sales service, timely and comprehensive for each customer. Aiming at offering the most suitable solution and professional service, Persisting in client requirement oriented, offering high quality, reasonable price and cordial service which have formed a unique service mode.

We sincerely expecting for cooperation with all global clients on the basis of Mutual-Trust, Mutual-Understanding, and Mutual-Benefit.
