1600 Carton Box Lead Edge Feeding 4 Color Flexo Printing Machine
With Slotter Die Cutter Stacker
Carton Box Flexo Printing Machine Introduction
1. Machine is designed according to high request and reliable
function, humanization operation, it can setting, revision,
implement, changing and memories in short time, and display data
accurately .
2. All of drive rollers are made of high quality steel, hard chrome
plated the surface with grinded.
3. Main drive gears adopt high quality steel with heat treatment
with grinded, adopt cross slip system connect each gear, keep gear
fix position, ensure transmission precision.
4. The main drive roller adopt keyless connect, decrease the
connection gap, ensure printing precision.
5. The machine adopts sealed spray lubrication for gear system,
engineer oil automatic balance device; keep the oil level equal in
each unit.
6. Phase adjustment adopt PLC control with touch screen
7. The machine adopts lead edge (or kick feeding), low demand for
the cardboard, fast.
Parameter of Carton Flexo Printing Machine
Width | mm | 4000 |
Maximum Paper feeding size | mm | 1600×3800 |
Effective printing size | mm | 1600×3600 |
Minimum Paper feeding size | mm | 350×650 |
Thickness of printing plate | mm | 7.2 |
Design speed | sheets/mi
n | 200 |
Economic speed | sheets/mi
n | 150-180 |
Main motor | KW | 20 |
Total power | KW | 30-40 |
Weight | T | 15 |
Tinted precision | mm | ±0.5 |
Slotting precision | mm | ±1.5 |
Main units
 |
Paper feeding unit
It can send paperboard continuously or by skip (with counting
device). Electric controlling the clutch of the machine platform with alarm
in order to ensure operator safe.
|
 |

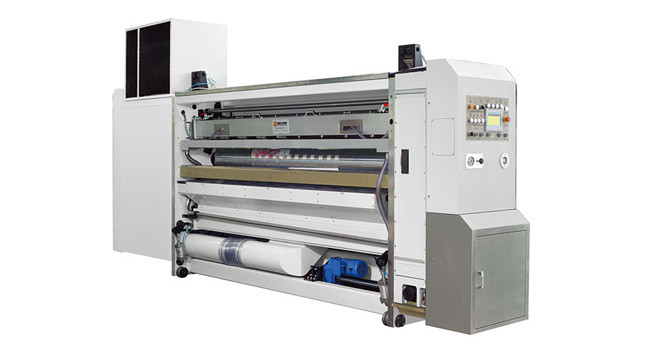

Printing unit
The surface of the printing roll is plated with hard chrome and
polished.The balance correction is made to make it run
smoothly.Using ratchet fixed plate, and a full - format plate slot,
can make the printing plate cling on the printing roller.Loading
and unloading printing plate, foot switch can be used to
electrically control the positive and negative rotation, easy to
operate.
|
