Chain Feeding 3 Colors Printing Machine For Corrugated Carton Box
With Slotter Die Cutter
Characteristic Carton Box Flexo Printing Machine
1. This machine can complete multi-color printing, slitting,
trimming, slotting, corner cutting, punching, cutting, etc. The
host is controlled by a frequency converter.
2. The machine adopts a modular design, and each unit can be
combined according to the need to adopt pneumatic locking and
electric separation.
3. The printing unit uses a diaphragm pump to supply ink, a
pneumatic lifting plate, and automatic ink distribution.
4. The slot-type synchronous transfer case is high, and the
synchronous sliding mechanism.
5. The microcomputer adjusts the printing and slotting phase
uniformly, and the adjustment is accurate and convenient.
6. The gear is made of high-quality steel, cross-slider drive, no
gap adjustment, to ensure the accuracy of printing and color
registration.
7. Automatic spray lubrication, oil level balance system.
Parameter
| Model | Max. paper sizes | Max printing size | Working speed | Max speed | Standard Printing Plate Thickness | Color-printed precision(four color) | Power of main motor | Roller diameter |
| HP-CM1400 | 2600*1400 mm | 2400*1400mm | 60(pcs/min) | 90(pcs/min) | 6mm | ±0.75mm | 11 kw | 480mm |
Main Units
 |
Paper feeding unit
Chain drive feeding type, separation by electricity and pneumatic
locking up, pneumatic raising plate, and auto-adjusting ink.
|
 |

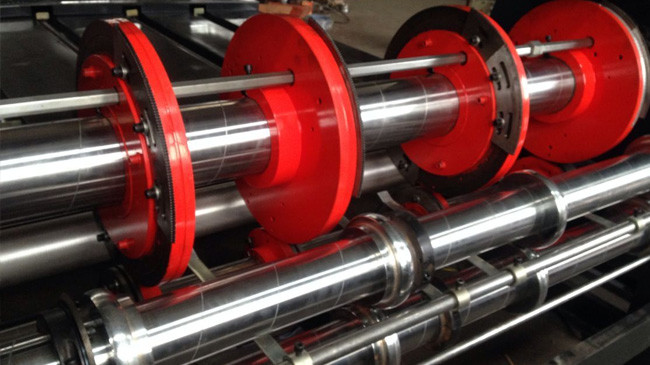

Slotting unit
1.The tool shaft is seamless steel tube, and it is plated hard
chromium after two times of grinding, and the movement is smooth 2.Slot width 7mm. 3.The alloy steel is grinded by heat treatment, and the hardness
and toughness of the slotting cutter are guaranteed 4.The alloy steel is grinded and sharpened by heat treatment. The
knife edge is sharp and the precision is high 5.Box height manual synchronous adjustment. 6.Planetary gear mechanism.
|
