Die Cutter Corrugated Board Printing Machine Two Color

    Buy cheap Die Cutter Corrugated Board Printing Machine Two Color from wholesalers

    Buy cheap Die Cutter Corrugated Board Printing Machine Two Color from wholesalers
    • Buy cheap Die Cutter Corrugated Board Printing Machine Two Color from wholesalers

    Die Cutter Corrugated Board Printing Machine Two Color

    Ask Lasest Price
    Brand Name : RINO
    Model Number : HP-LD1600
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10 Set/Month
    Delivery Time : 40-60 Working Days After Deposit
    • Product Details
    • Company Profile

    Die Cutter Corrugated Board Printing Machine Two Color

    2 Color Corrugated Box Flexo Printer With Die Cutter Corrugated Board


    Box Flexo Printing Machine Introduction


    The slotting department adopts PLC programming to control the operation of each part, store and memorize orders, and control each part automatically in place with one button, and enter the "length, width and height" of the new order to form with one button. The die-cutting department adopts the most popular plate-free die-cutting device and speed difference compensation system. The rubber pad moves vertically and horizontally to increase the service life of the rubber pad. The gear of the whole machine is ground with special alloy steel, and the keyless coupling ring is used to ensure the transmission accuracy.


    Parameter of Carton Flexo Printing Machine


    ModelHP-LD1600

    Maximum paper size

    1600×4200mm

    Minimum paper size

    450×700mm

    Skip paper feeding size

    1750×4200mm

    Maximum printing size

    1600×4200mm

    Printing repeating dots

    1683

    Standard printing plate thickness

    7.2mm

    Cardboard thickness

    2-11mm

    Maximum speed

    100pcs/min

    Paper feeding accuracy (paper feeding direction)

    ±1.0mm

    Tinted accuracy of each set of printing

    ±0.5mm

    Maximum lifting weight

    15T


    Main units


    Die Cutter Corrugated Board Printing Machine Two Color

    Paper feeding unit


    1. The leading edge paper feeding increases the suction flow; the paper feeding is more stable and accurate. Frequency conversion controls the wind box vacuum air flow and pressure to match the cardboard size, dust-proof control box.

    2. "Delta" series PLC, high-speed operation module and connection communication interface.

    3. The main panel on the operating side uses a 10.4-inch color touch-sensitive unit to operate the man-machine interface.

    4. The front and side operation panels of the paper feed unit (stainless steel).


    Die Cutter Corrugated Board Printing Machine Two Color

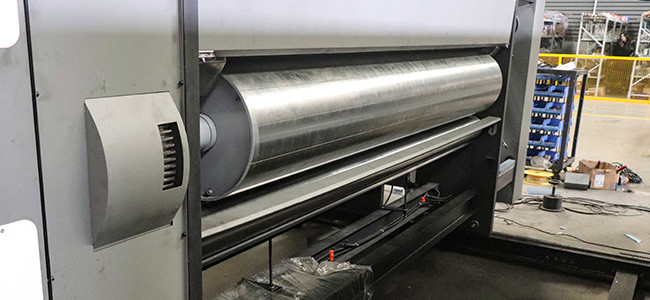

    Printing unit


    1. With the width of the cardboard, the pneumatic gate can be opened and closed electrically to adjust the adsorption range. The suction power of the suction box can be adjusted according to the requirements of different sizes of cardboard.

    2. There is no need to install the paper strip-mounted printing plate without the printing unit of the suction conveying device, reducing the time of plate-loading operation.

    3. The memory returns to the original printing position function, and the cleaning plate rotates the printing roller to automatically record the relative position of each color before stopping.


    Die Cutter Corrugated Board Printing Machine Two Color

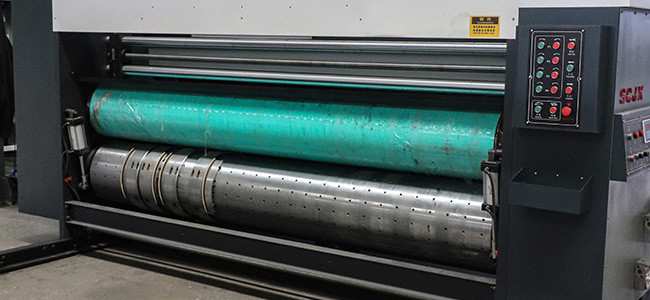

    Die Cutting Unit


    There are three operation modes of phase adjustment and registration, numerical setting, button quantitative or inching continuous. After the phase is set, the frequency converter will automatically adjust the speed, which has both accurate positioning and time saving.



    Packaging&shipping

    Die Cutter Corrugated Board Printing Machine Two Color

    FAQ

    1. Q:What is the machine warranty?
    A: one year.
    2. Q:What is the production time while placing order?
    A: About 20 days
    3. Q:What is the delivery time?
    A: 40-60 days after get the payment.
    4. Q:Can your company handle shipping for customers?
    A: Yes, just give us destination sea port or container yard
    5. Q:Does the packing strong?
    A: Yes, all packages are double-checking before delivery
    6. Q:Do you have machines in stock?
    A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
