Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min

    Buy cheap Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min from wholesalers

    Buy cheap Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min from wholesalers
    • Buy cheap Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min from wholesalers

    Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min

    Ask Lasest Price
    Brand Name : RINO
    Model Number : HS-D2000
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 20 Set/Month
    Delivery Time : 20-40 Working Days After Deposit
    • Product Details
    • Company Profile

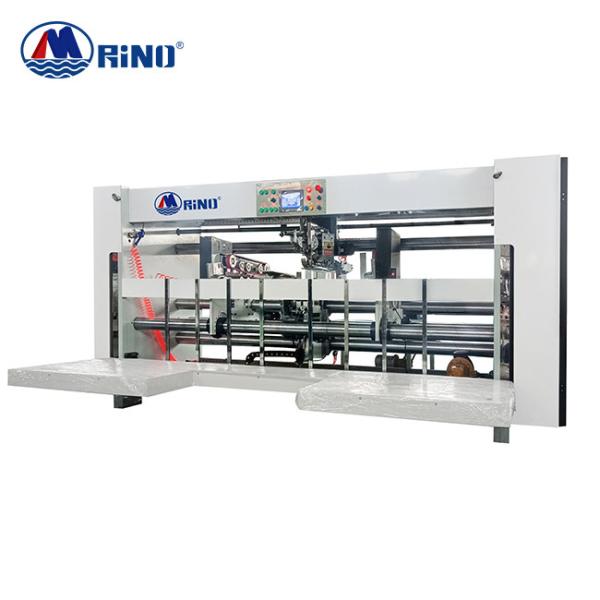

    Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min

    HS 2000 Large Size Double Pieces Cardboard Box Stitching Machine


    Cradboard Stitching Machine Features


    1. The Machine can do single nails, double nails and reinforcing nails at one time

    2. Size can be changed quickly, operation is very easy.

    3. The feed part is counted automatically.
    4. The number of finished products can be sent to the conveyor by the set number (1-99)
    5. It is suitable for 3 ply and 5 ply small size colored box.



    Cradboard Stitching Machine Parameter


    ModelHS-D2000
    Max paper(A+B)*2(mm)4000
    Min paper(A+B)*2(mm)1060
    A Max carton length(mm)2850
    A Min carton lengt(mm)350
    BMax width(mm)1000
    B Min width(mm)120
    Max (C+D+C)paper height(mm)2500
    Min(C+D+C) paper height(mm)400
    C(mm)560
    C(mm)50
    DMax height(mm)2000
    DMin height(mm)150
    Max tongue width(mm)45
    Stitch distance30-120
    Stitch No1-99
    Speed (/min)600
    weight(T)2.5


    Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min


    Machine detail


    Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min

    Patent type feeding width automatic adjustment device and printing locking
    device with screw.


    Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min

    Touch acreen adjust nail distance. It is main machine interface control for convenient operation.


    Our Factory


    Large Size Corrugated Box Stitching Machine Double Pieces 600 Nail/Min
