Slotter Creasing Box Making Corrugated Carton Rotary Slotting
Machine

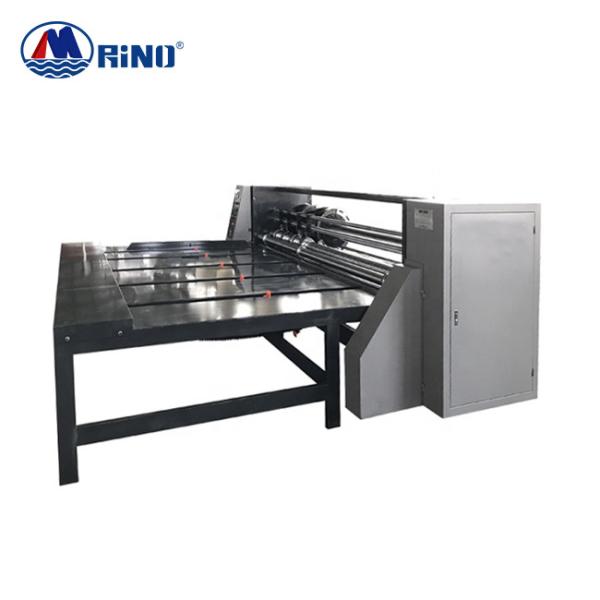

Machine Introduction of Corrugated Rotary Slotter Machine
1. The machine shaft, roller are adopted high quality steel,
grinding processing, high precision computer dynamic balancing
correction and surface hard chromium plating.
2. The engine drive gear is adopted 40Cr, the shaving machining
nitrogen treatment, tinted with high precision.
3. Machine transmission parts (shaft, gear joint) is adopted free
key connection (LOCK -ALX),clears the connection gap.lt is suitable
for long-term high speed running with high torque.
4. The machine drive bearing ,important driving parts adopt three
big domestic famous brand:Hava los,simple maintenance,long service
life.
5. The engine lubrication system is adopted automatic spray type
lubrication, equipped with auto oil level balance system.
6. It adopts Working gap adjustment, self-locking type worm wheel
and worm gear device , quick performance and convenient adjustment.
7. The main motor is adopted frequency conversion control.Ilt makes
start, running more steadily and saves more energy.
8.Rotary die-cutting department and rotary slotting department is
optional for you.
Corrugated Rotary Slotter Machine Parameter
| Model | The Max. Feeding Area (mm) | The Max. Working Speed
(sheet/min) | The Slotting Width (mm) | The Main Motor power (KW) |
HR-S4900 | 900*2600 | 60 | 7.5 | 4 |
HR-S41200 | 1200*2600 | 60 | 7.5 | 4 |
HR-S41400 | 1200*2600 | 60 | 7.5 | 4 |
HR-S41600 | 1600*2600 | 60 | 7.5 | 4 |
Detailed Picture
FAQ
1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
