Corrugated Board Production Line Mill Roll Stand Hydraulic Stand Paper Clip Equipments

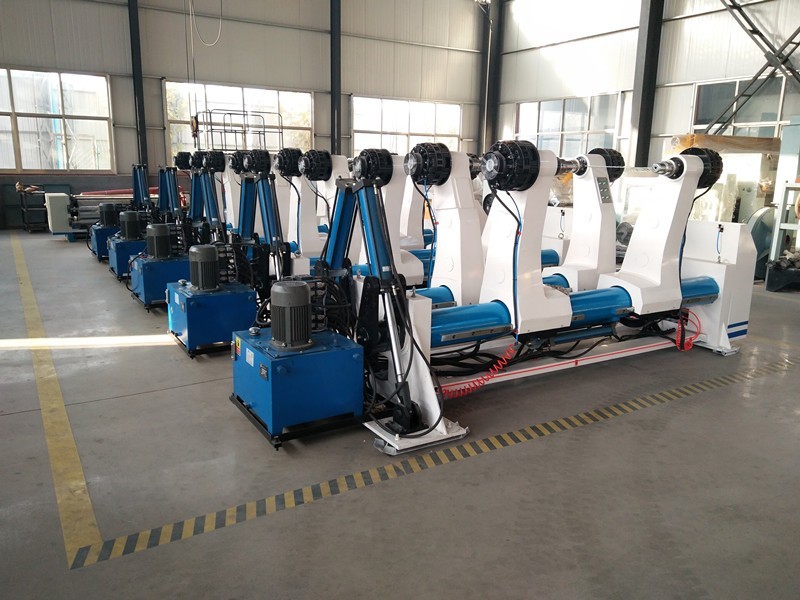

Features of Hydraulic Shaft Less Mill Roll Stand

1. Symmetrical structure, can carry two craft paper at one time, which can work without brake.

2. Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure. feeding craft / reel paper quickly.

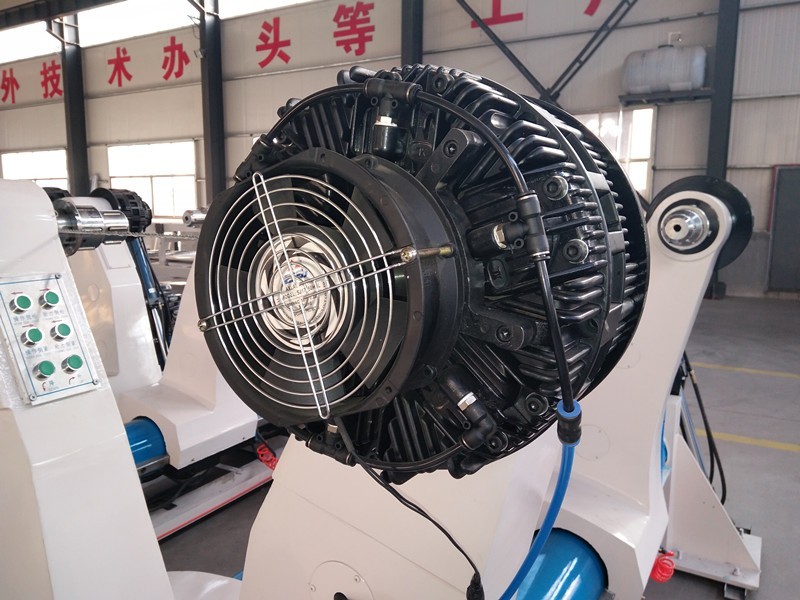

3. Brake: pneumatic brake

4. Double Level Auto Expander, Expander head:3/4 inch Double Level.

5. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

6. Brake adjustable adopts multipoint braking system.

7. Every stand matched two sets paper car , and they can paper on the both sides at the same time.

8. tooth jammed with dual-stage head and jammed the first three four inches dual-stage.

Parameter of Hydraulic Shaft Less Mill Roll Stand

	Name	Main Parameter
1	Expiry width	1800mm
2	Clamp paper range	Max:1600--1800mm Min:900mm
3	Clamp paper Dia	Max:1400mm Min:400mm
4	Singlearm Max load	Max weight: 1500kg
5	Clamp motor	Work power:0.75kw 4pcs
6	Lift motor	Work power:2.2kw 1pcs
7	Voltage	As customer’s required

Hydraulic Shaft Less Mill Roll Stand Introduction

Main Parts

Name of main parts	Brands or place of origin	material
Main shaft	Day steel production	diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB OR C&U
teeth chuck	3-4inch shared
Main electrical appliance	Siemens
