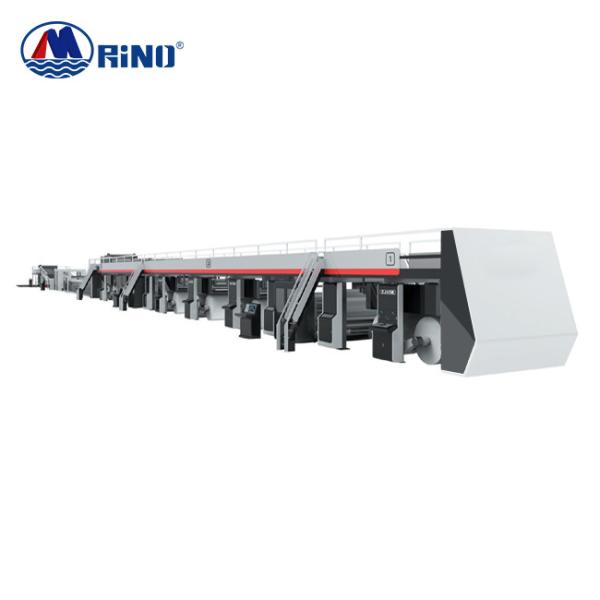

5 Ply 2200mm 180 Corrugated Board Production Line For Carton
Cardboard
Machine introduction of Corrugated Board Production Line
According to the corrugated board production process, the
corrugated board production line is composed of two relatively
independent process sections, wet end equipment and dry end
equipment. The wet end equipment mainly includes base paper trays,
automatic paper splicing machines, preheating pre-conditioners, and
single facer machine, paper conveyor bridges, glue spreaders,
double facer machines, etc., wet end equipment will make corrugated
base paper into three, five, and seven-layer corrugated cardboard
with different flute combinations; cadre equipment mainly includes
rotary cutting machines, slitting and creasing machines ,
Cross-cutting machine, stacking machine, etc., the cadre equipment
will slit the corrugated cardboard according to the order
requirements for slitting, cross-cutting and stacking.
Parameter
| 1 | Effective width | 2200mm | 2 | Design produce speed | 180m/min |
| 3 | Three layer work speed | 150-180m/min | 4 | Five layer work speed | 120-150m/min |
| 5 | Seven layer work speed | ------------------- | 6 | The highest change single speed | ------------------ |
| 7 | Longitudinal separation accuracy | ±1mm | 8 | Cross-cutting precision | ±1mm |
note | Speed the above targets required to achieve:effective
width2200mm,Comply with the following standards and ensure the
paper's equipment condition 175 ℃ heating surface temperature. |
| Top paper index | 100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%) |
| Core paper index | 80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%) |
| In paper index | 90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%) |
| 9 | Flute combination | |
| 10 | Steam requirement | The maximum pressure 16kg/cm2 | Common pressure10-12kg/cm2 | use4000kg/Hr |
| 11 | Electricity demand | AC380V 50Hz 3PH | Total power≈250KW | Running Power≈150KW |
| 12 | Compressed air | The maximum pressure 9kg/cm2 | Common pressure4-8kg/cm2 | use1m3/min |
| 13 | space | ≈Lmin75m*Wmin12m*Hmin5m(The actual drawing to provider to provide
audited prevail) |
Corrugated Single Facer Machine
Machine Introduction
* Design speed: 180m/min.
* Corrugated rollers made of 48CrMo alloy steel, with heat
treatment for hardness HRC58-60, surface plated with chrome
treatment.
* corrugating roller: Dia.280mm with a drum.
* Press roller: Dia.320mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation
in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive
box, separating dynamic vibrations improve running stability, easy
and fast for maintenance
* Gluing roller: surface is embossed with netting design and chrome
plated.
* Adjustment of upper corrugated roller, pressure roller and glue
roller controlled by pneumatic system.
* With preheating and preconditioning rollers.
NC Cut Off Machine
| Width | 2200mm |
| Cutting lenth | 500—9999mm |
| Order keeping | 999orders |
| Cutting precision | ±1mm |
| Power | 11kw |
| Knive roller diameter | 190mm |
| Max.production speed | 180m/min |
Machine Introduction
1. Special structure type, high quality wallboard and seat,
reliable and slinky.
2. With watch-window on two sides wallboard, easy for see in
manufacturing and maintenance.
3. Driving part adopts hermetic lubricate, make sure high
precision, high stability.
4. Adopts high precision and rigidity lapping gear, suit for high
speed, oil felt lubrication prolong work-life. Ensure cutting blade
accuracy meshing, carton sheets without raw edges.
5. High precision cutting shaft and cutting seat, reliable and
slinky.
6. Special structure design in changing blade, easy and fast to
change blade.
7. Whole system design C.E standard strictly, pass industry
computer test strictly, ensure high quality, long work life and
stability.
