    Electrical Corrugated Board Production Line , Shaft Less Rolling Mill Stands

    Ask Lasest Price
    Brand Name : RINO
    Model Number : HE-M1800
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Month
    Delivery Time : 40-60 Working Days After Deposit
    • Product Details
    • Company Profile

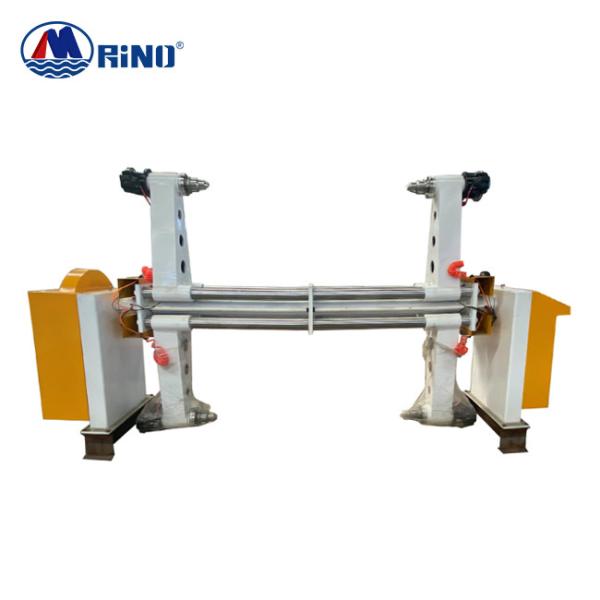

    Electrical Corrugated Board Production Line , Shaft Less Rolling Mill Stands

    Corrugated Board Production Line 1600 Electrical Shaft Less Mill Roll Stand


    Electrical Shaft-Less Mill Roll Stand Function


    1) Round-plate type manual break, the web tension is adjusted at any time.
    2) Arm clamp and rotary structure set fixed torque clutch, operate safety.
    3) The sturcture is double rotary shaft with four arms, support two paper mill roll on both arms at the same time.
    Electrical Shaft-Less Mill Roll Stand Parameter
    Width1400-2500mm
    Paper roll dia.φ350-φ1500mm
    Single side hold weight2T
    Pressure0.6-0.9Mpa
    Total power4.0kw
    Voltage3ph380v 50Hz

    Machine Introduction


    Electrical Corrugated Board Production Line , Shaft Less Rolling Mill StandsElectrical Corrugated Board Production Line , Shaft Less Rolling Mill Stands

    The weighing structure can be installed two bundles of paper tube at the same time, can be used for non-stop paper changing operation;Using mechanical drive to complete the base paper clamping, lifting, loosening, moving to the center, left and right translation and other actions.
    ◆ Manual disc brake, below the limit screw, automatic expansion type clamping head.
    The whole track buried, the main frame for the 14 channel steel and ¢20mm cold-drawn round steel welding, the length of the rail 4510mm.
    ◆ Each paper frame with two paper trolley from both sides can be simultaneously on the paper.
