    PP Belt Corrugated Box Strapping Machine

    Ask Lasest Price
    Brand Name : RINO
    Model Number : HS-A1600
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100 Set/Month
    Delivery Time : 20 Working Days After Deposit
    • Product Details
    • Company Profile

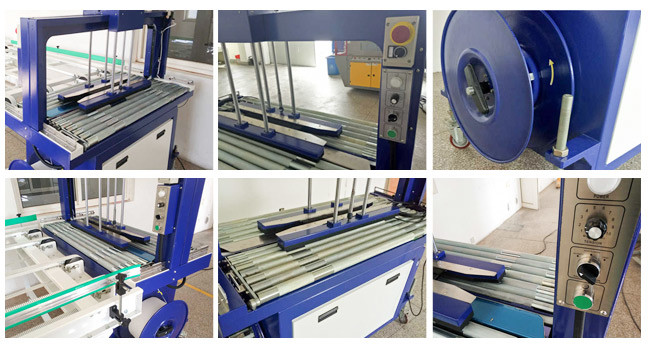

    PP Belt Corrugated Box Strapping Machine

    Fully Automatic PP Belt Packing Bundling Strapping Machine For Carton Package


    Specifications of Corrugated Box Strapping Machine


    Using the brand strapping technology, it is now designed as a dual-circuit control of the whole machine, which is more stable and reliable than the previous single-circuit control performance. The dual-circuit control reduces the internal load of the machine's electrical board, and the strapping structure runs more smoothly and stably between each circuit. As a manufacturer of balers, we have superior performance, more reliable quality, simpler and more convenient inspection and debugging, and the first to adopt photoelectric control for the retracting clutch. The working principle of this automatic packing machine is to complete packing through tensioning, heat capacity, tape cutting, and bonding. The professional baler factory produces a wide range of applications. No matter the size of the packaging, it can be packed without adjusting the machine. The strapping machine is a mechanical structure, and some of the imported baler parts are used. The rear blade is stable and reliable, easy to adjust, and the baler is reasonably priced.


    Specification of Strapping Machine


    Model1600
    Dimension (L*W*H):1600*660*1900mm
    Weight120kgs
    Tape width:5mm(optional)
    Power:1ph,220v,50HZ 600w10A
    Strapping speed:15bundle/min
    Arch size(W*H):W650*H500 mm
    Strapping tension:45kg
    Height of table:850mm(Adjustable table bases can be optional)
    Effective width of working table:650mm
    Bearing capacity80kg
    Bonding wayAt the bottom of the adhesive,bonding surface>90%
    Air pressure0.5-0.8MPa

    NameParameter
    Total Power (Including Steering Machine,Box Closer,Pressurized)3KW
    Power Supply

    Three-phase five-wire AC 380 V (1+10%)50Hz

    Steering Machine(L2210 W2050 H1460)
    Box Closer(L1880 W2050 H1360)
    Baler(L1580 W670 H2000)
    Working Ability12-18pcs/min
    Working Environment

    Relative humidity less than or equal to 90%,temperature 0-40 degrees Celsius,noise less than or equal to 75 dB(A)


    Packing type specification

    Width5-9 mm
    Thickness0.5-0.6 mm

    Tape Size


    Ring paper core diameter 200mm-210mm


    Outer diameter of belt ring 400-450mm


    Ring width 175-190mm

    Adhesion methodHot fusion
    Bonding mode

    Bottom bonding the area more than 90%,the deviation lower than 2mm

    Strapping tightness0-45Kg
    Gas Pressure0.5-0.8MPa
    Roller MaterialStainless Steel
    Roller Diameter50mm
    Frame Thickness1.2-1.5mm
    Convey Speed0-50m/min
