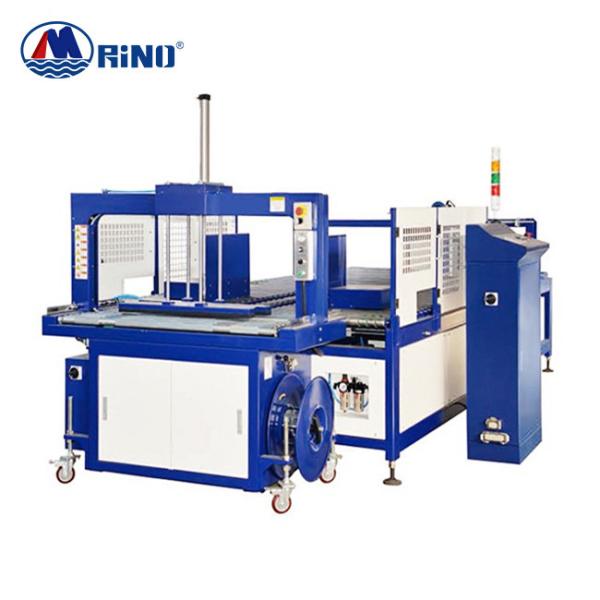

Corrugated Box Automatic Strapping Machine Wrapping Machine For
Carton
Specifications of Corrugated Box Strapping Machine
Receive board and turn part
1. Smoothly receive cardboard before prior conveying.
2. Double touch type steering, will be 90 degrees of corner
cardboard.
Clear up and patting part
1. Can be adjusted according to different specifications carton
size.
2. Arrange positioning automatically four direction taken together,
and then delivery.
Delivery part
After finishing send carton smoothly, improve the work efficiency;
Pressure strapping part
1. Pneumatic pressure will be more than one solid board.
2. PP belt automatically, the elastic can be adjusted, paper edge
damage light.
3. Automatic adaptation cardboard size.
4. Photoelectric sensing detection strap position.
5. 1~2 Road, the use of knob switch
6. Strapping automatically after delivery.
Specification of Strapping Machine
| Model | 1600 |
| Dimension (L*W*H): | 1600*660*1900mm |
| Weight | 120kgs |
| Tape width: | 5mm(optional) |
| Power: | 1ph,220v,50HZ 600w10A |
| Strapping speed: | 15bundle/min |
| Arch size(W*H): | W650*H500 mm |
| Strapping tension: | 45kg |
| Height of table: | 850mm(Adjustable table bases can be optional) |
| Effective width of working table: | 650mm |
| Bearing capacity | 80kg |
| Bonding way | At the bottom of the adhesive,bonding surface>90% |
| Air pressure | 0.5-0.8MPa |
| Name | Parameter |
| Total Power (Including Steering Machine,Box Closer,Pressurized) | 3KW |
| Power Supply |
Three-phase five-wire AC 380 V (1+10%)50Hz |
| Steering Machine | (L2210 W2050 H1460) |
| Box Closer | (L1880 W2050 H1360) |
| Baler | (L1580 W670 H2000) |
| Working Ability | 12-18pcs/min |
| Working Environment |
Relative humidity less than or equal to 90%,temperature 0-40
degrees Celsius,noise less than or equal to 75 dB(A) |
Packing type specification | Width | 5-9 mm |
| Thickness | 0.5-0.6 mm |
Tape Size |
Ring paper core diameter 200mm-210mm |
|
Outer diameter of belt ring 400-450mm |
|
Ring width 175-190mm |
| Adhesion method | Hot fusion |
| Bonding mode |
Bottom bonding the area more than 90%,the deviation lower than 2mm |
| Strapping tightness | 0-45Kg |
| Gas Pressure | 0.5-0.8MPa |
| Roller Material | Stainless Steel |
| Roller Diameter | 50mm |
| Frame Thickness | 1.2-1.5mm |
| Convey Speed | 0-50m/min |
