Hydraulic Shafless Mill Roll Stand Heavy Type For Corrugated Board Production Line

Features of Hydraulic Shaft Less Mill Roll Stand

1. Adopt double drum symmetrical four-arm structure, can support two rolls of base paper at the same time use efficiency is higher.
2. Low noise Motor, more quiet.

3. Plum multi - point pneumatic brake,The friction plate has long service life, stable torque control, accurate, stable and adjustable air pressure.

4. It is not easy to damage, the tooth of the chuck and the wall of the paper tube bite the side wall of the paper core to achieve the effect of clamping the paper core.

Parameter of Hydraulic Shaft Less Mill Roll Stand

Product Name	Hydraulic Mill Roll Stand
Width	1200-2800mm
Roll Paper Min. width	1200-2000mm: 800mm 2000-2800mm: 1200mm
Roll paper diameter	Max. 1500mm
Support Weight	Max. 3Tons
JIG	Standard: Inner expanding chuck Option: Zero waste type chuck
Feeding trolley	6/7/8/10m, manual/electric/hydraulic, option. 2 heavy track
Brake	Pneumatic, multi-point brake
Material	Cast Iron
Network control	Available, need to connect to Auto Splicer, Automatic tension adjustment
Centering device	Option
Connect with Roll paper conveying system	Available

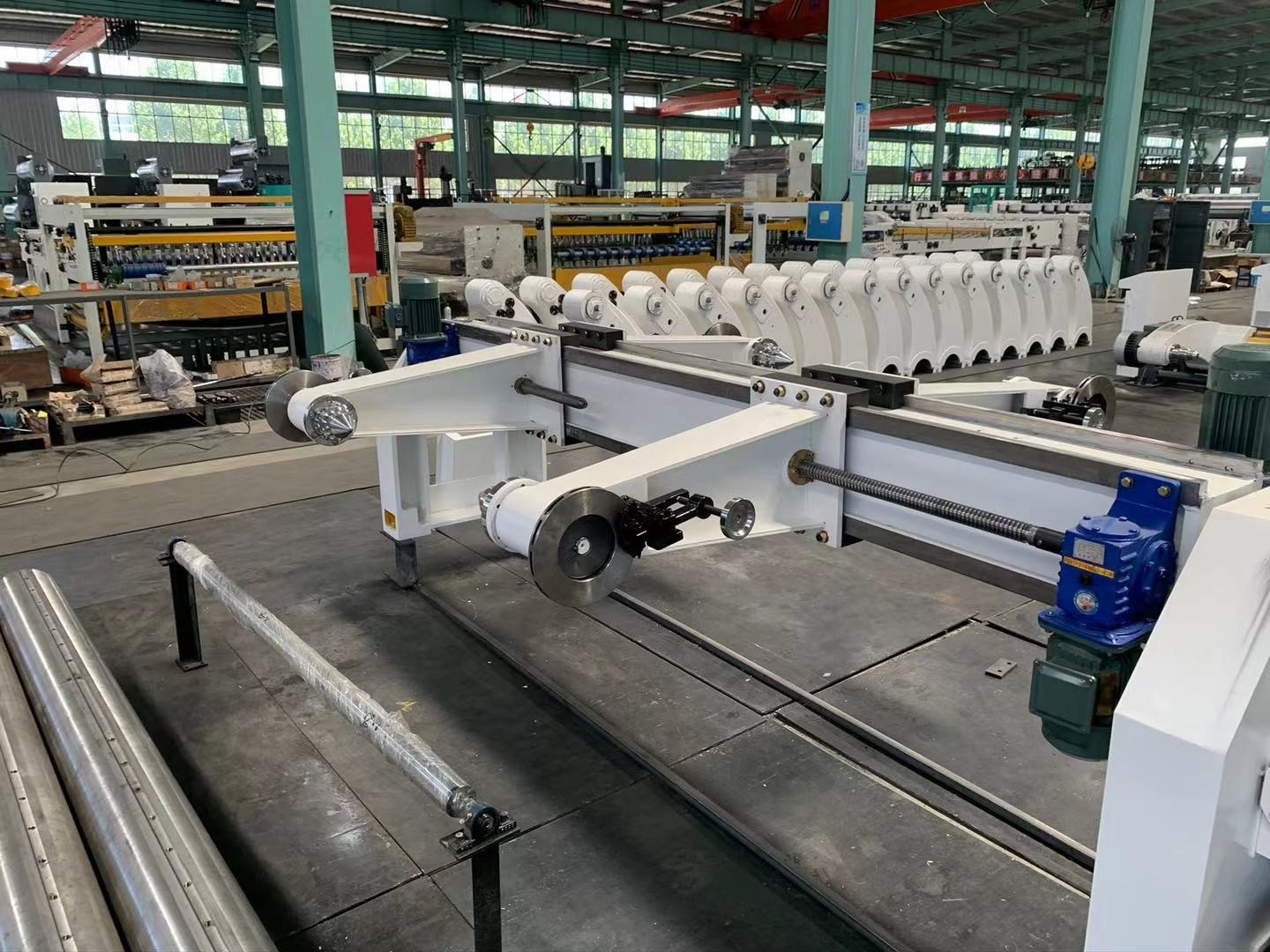

Mill Roll Stand Show

Main Parts

Name of main parts	Brands or place of origin	material
Main shaft	Day steel production	diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB OR C&U
teeth chuck	3-4inch shared
Main electrical appliance	Siemens
