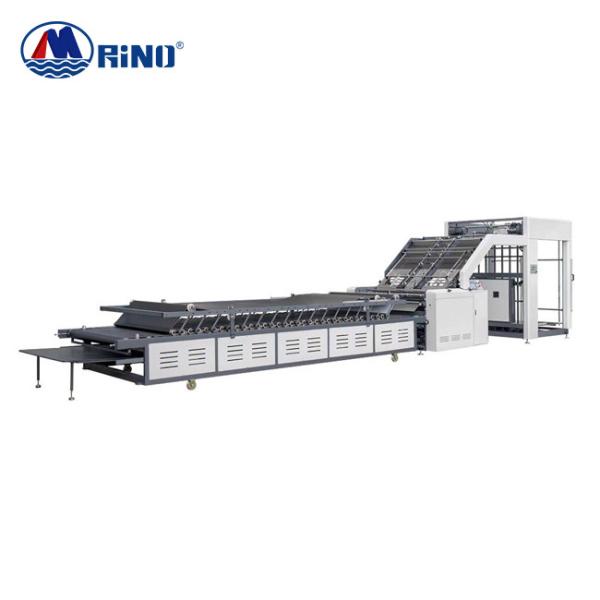

Automatic Corrugated Paper Cardboard Flute Laminating Machine Flute
Laminator
Basic Configuration of Flute Laminating Machine
1. Measure roller line-speed design scientifically, avoid glue fly
out when the speed is high.
2. Pressure rollers adopt unilateral adjustment, convenient and
fast.
3. Cleaning type : bottom roller is extruded by rubber roller to
clean the bottom laminating pressure roller, ensure the cleaner on
the reverse of the bottom paper . Make glue etc. foreign matter
after washing direct subside in tank. At the same time , adopting
the gear and chain to control the lifting of tank, can take out the
tank easily and convenient to wash .
4. he pressure conveyor adopt floating movable structure , total
length 5m , equipped with 28 paper pressing rollers , make the
cardboard uniform bearing strength in pressing process.
5. Counter designs scientifically, easy recording the amount you
have been worked.
6. Small pressure table (optional) . length 2.5m , big pressure
table length 5m.
Main Parameter of Flute Laminating Machine
| Model | HL-A1300 | HF-A1400 | HF-A1500 | HF-A1600 |
| Max laminating size | 1300mm×1250mm | 1400mm×1250mm | 1500mm×1250mm | 1600mm×1250mm |
| Min laminating size | 400mm×400mm | 400mm×400mm | 400mm×400mm | 400mm×400mm |
| Economic speed | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min |
| Laminating precision | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Power | 10kw | 12kw | 12kw | 12kw |
| Size | 13.5m×2m×2.4m | 13.5m×2.05m×2.4m | 13.5m×2.15m×2.4m | 13.5m×2.25m×2.4m |
| Weight | About 4.8t | About 5t | About 5.2t | About 5.4t |
| Bottom paper thickness | A/B/C/E/F flute,2/ 3/4/5/7/ layer , less than 12mm thickness |
| Surface paper gram weight | 150-600 g/m2 |
Main Units
 |
Top feeding unit
1.High precision high speed feeder , make the feeding smooth .
2.Strengthen type feeder device , the suction mouth angle can be
adjustable , according to different kinds of surface paper .
|
 |
Gluing unit
Stainless steel material roller,never rust, guarentee the amount of
glue is even.
|
