    2200w Corrugated Folder Gluer Machine 40 Pieces /Min For Cartons Bonding

    Ask Lasest Price
    Brand Name : RINO
    Model Number : HF-GS2800
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 20 Set/Month
    Delivery Time : 20 Working Days After Deposit
    • Product Details
    • Company Profile

    2200w Corrugated Folder Gluer Machine 40 Pieces /Min For Cartons Bonding

    2800 Semi Automatic Corrugated Box Pasting Machine Carton Box Folder Gluer Machine


    Carton Box Folder Gluer Introduction


    Semi-automatic carton box folding gluing machine is the last process equipment of carton forming. It is suitable for the combination of three-layer and five-layer corrugated cardboard (if seven layers need to be bonded, it can be customized). It does not require nails and nails, and the cost is low. Suitable for all kinds of cartons bonding. It is suitable for the bonding of continuous cartons, the back section is automatically counted, and 10 cardboards can be output horizontally, which is convenient for bundling. Mid-section correction function, the carton will not appear the phenomenon of scissors. This machine has high production efficiency, and the cardboard produced is square and beautiful. The biggest advantage is that it consumes less glue and the cost is 10 times lower than that of boxed flat wire. The bonding is firm, the operation is convenient, the labor and electricity are saved, and the operation is stable. It is an ideal equipment for exporting high-end carton processing.


    Parameter


    Max cardboard size (length +width)*2(mm)2800
    Min cardboard size (length +width)*2(mm)340
    Max cardboard size (width +height) (mm)1515
    Min cardboard size (width +height) (mm)250
    Feeding cardboard height(mm)900
    Power of main motor2.2
    Machine weight(kg)2000
    Machine speed(pieces /min)40
    Dimension(mm) length *width *height5500 x 1800 x 2000

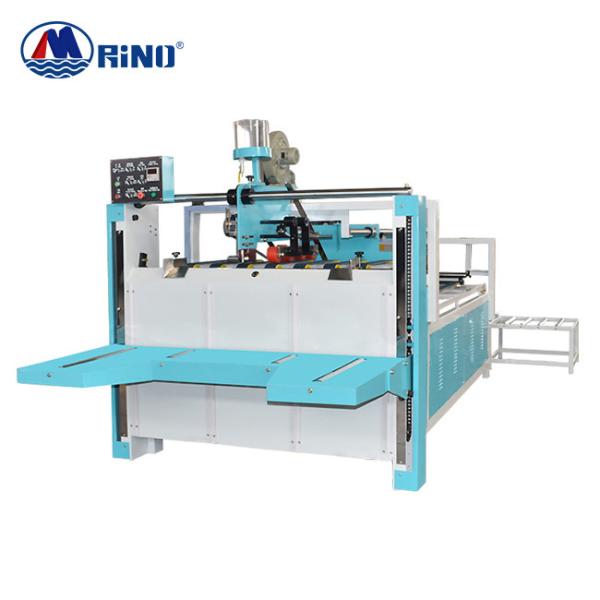

    Machine Details

    2200w Corrugated Folder Gluer Machine 40 Pieces /Min For Cartons Bonding2200w Corrugated Folder Gluer Machine 40 Pieces /Min For Cartons Bonding

    2200w Corrugated Folder Gluer Machine 40 Pieces /Min For Cartons Bonding

    2200w Corrugated Folder Gluer Machine 40 Pieces /Min For Cartons Bonding
