3 5 7 Ply Carton Production Line 150m/Min Automatic Corrugation
Machine

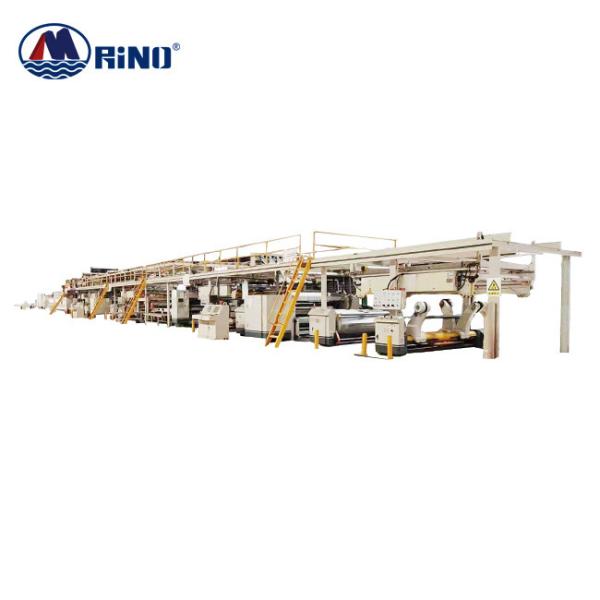

Machine introduction of Corrugated Board Production Line
The corrugated board production line includes roll stand, single
facer machine, preheater, conveying bridge, gluing machine,
thin-blade slitting machine, NC cutting machine and automatic
stacker, producing high-quality board with high speed and high
performance . We can produce three-layer, five-layer and
seven-layer corrugated board production lines with widths from
1400mm to 2200mm and production speeds from 60 to 300 m/min.
Customers can choose the production capacity according to their
needs.
Parameter
| Max. paper width: | 1800mm |
| Max. Width of corrugating roll | 1870mm |
| Max. speed of machine | 150m/min |
| Flute TYPE: | flute type according to client request |
Steam consumption: 2000kg/hour Working. pressure: 1.0—1.1MPa Max. pressure 1.3Mpa |
| Power requested: | 380V,50Hz,3-phase |
| Total power: | About 100kw for general condition |
| Total length of line: | 62 meters. |
| NO | MACHINES LIST |
| 1 | Hydraulic Mill Roll Stand --Support two Dia.1500mm paper mill --Including track and trolley for carry paper mill --Pneumatic brake and spring clutch |
| 2 | Preheater (RG) Ø600mm |
| 3 | Single Facer Ø320mm 48CrMo high quality alloy steel,rigidity HRC55°-58° After quenching and tempering,The surface of upper-lower roller is
ground. |
| 4 | Overhead Bridge --Double vacuum tension control --Electric paper way control |
| 5 | Glue Machine Ø320mm GM-B -- Glue roller embossed and chrome plated |
| 6 | Double Facer (SM-S) --Including quality cotton belt 1set --including drive roll stand --including 14 pcs(14 x 600MM) heating plates |
| 7 | Thin blade Slitter Scorer --5 set slitter knives and 8 set scorer wheel --automatic grinding knives |
| 8 | N.C Cut-off (Computerized order change) --With full servo Computer system |
| 9 | Stacking machine |
| 10 | Glue Making Machine |
| 11 | Internal Steam Pipe System |
| 12 | Internal Electric System |
| 13 | Compress Air System |
Corrugated Single Facer Machine
Machine Introduction
| Max. machine speed | 150m/min |
| Max. working width | 1800mm |
| Max working steam pressure: | 1.0-1.3Mpa |
| Steam temperature | 160—210 centigrade |
| Power requirements: | 380V, 50Hz |
| Diameter of corrugated roller | 320mm |
*Corrugated rollers made of 48CrMo alloy steel, with heat treatment
for hardness HRC58-60, surface plated with chrome treatment.
*corrugating roller: Dia.320mm with a drum.
* Vacuum suction Fingerless design provides perfect flute formation
in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive
box, separating dynamic vibrations improve running stability, easy
and fast for maintenance.
*Gluing roller: surface is embossed with netting design and chrome
plated.
*Adjustment of upper corrugated roller, pressure roller and glue
roller controlled by pneumatic system.
*With preheating and preconditioning rollers.
NC Cut Off Machine
| Width | 1800mm |
| Cutting lenth | 500—9999mm |
| Order keeping | 999orders |
| Cutting precision | ±1mm |
| Power | 11kw |
| Knive roller diameter | 190mm |
| Max.production speed | 150m/min |
Machine Introduction
1. Special structure type, high quality wallboard and seat,
reliable and slinky.
2. With watch-window on two sides wallboard, easy for see in
manufacturing and maintenance.
3. Driving part adopts hermetic lubricate, make sure high
precision, high stability.
4. Adopts high precision and rigidity lapping gear, suit for high
speed, oil felt lubrication prolong work-life. Ensure cutting blade
accuracy meshing, carton sheets without raw edges.
5. High precision cutting shaft and cutting seat, reliable and
slinky.
6. Special structure design in changing blade, easy and fast to
change blade.
7. Whole system design C.E standard strictly, pass industry
computer test strictly, ensure high quality, long work life and
stability.

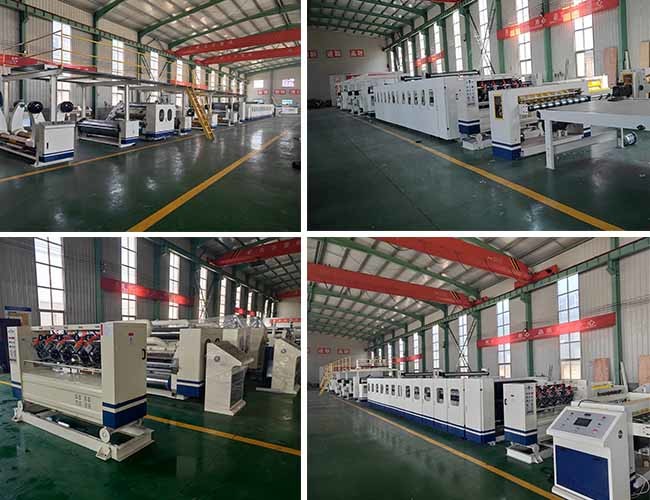

Our Factory
